TC-400 Orbital TIG Welding Head Automatic Tube-to-Tube Orbital Welding System | No-Filler Welding for Stainless Steel, Titanium & Carbon Steel

Product Details

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model:	TC-400	Weldable Tube Diameter:	Φ19.05～Φ114.3mm
Rotation Speed (RPM):	0.095–1.9	Shielding Gas:	Argon
Dimensions (L X W X H):	53121248mm

Model:	TC-400
Weldable Tube Diameter:	Φ19.05～Φ114.3mm
Rotation Speed (RPM):	0.095–1.9
Shielding Gas:	Argon
Dimensions (L X W X H):	53121248mm

TC-400 Orbital TIG Welding Head Automatic Tube-to-Tube Orbital Welding System | No-Filler Welding for Stainless Steel, Titanium & Carbon Steel

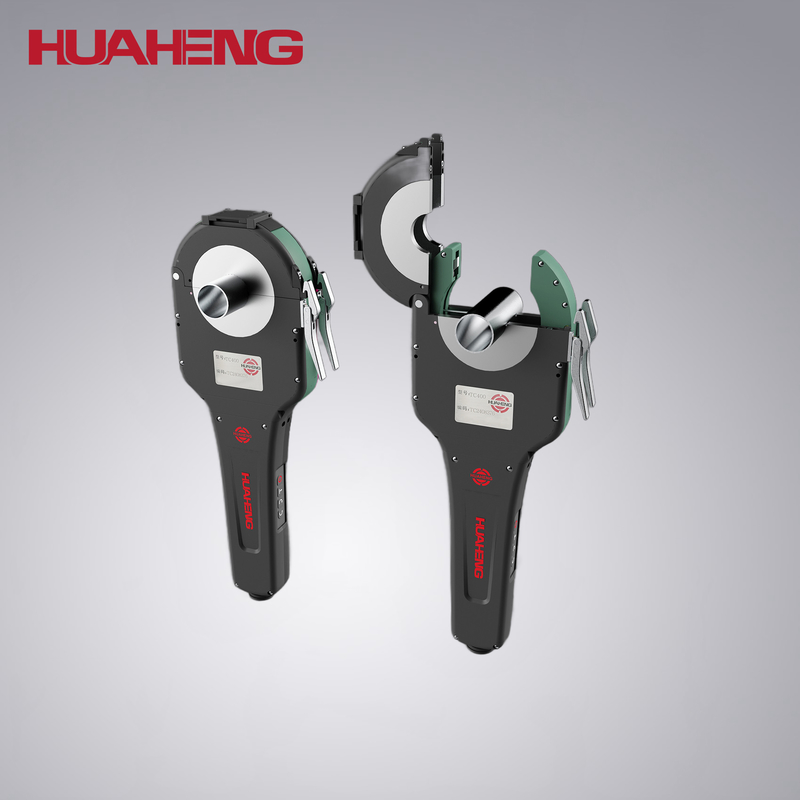

The TC-300 and TC-400 are precision-engineered orbital welding heads designed for high-quality, no-filler TIG welding of pipes and fittings in all positions. Featuring a gas-sealed chamber and integrated water cooling, these systems deliver superior weld protection and repeatability, making them ideal for industries like pharmaceuticals, nuclear energy, military, and instrumentation. The patented self-centering fixture ensures precise alignment without tack welding, streamlining on-site installations and production workflows.

Key Features

Orbital Welding Capability: Full-position welding for pipes, elbows, flanges, and tees.
Material Versatility: Compatible with thin-wall stainless steel, titanium, titanium alloys, and carbon steel.
Robust & Lightweight: Aluminum construction ensures durability and portability.
Advanced Gas Shielding: Sealed chamber with argon protection for oxidation-free welds.
Auto-Centering Fixture: Eliminates manual alignment for faster setup.
Continuous Operation: Water-cooled design supports prolonged welding cycles.
Ergonomic Controls: Integrated handle buttons simplify operation.

Technical Specifications :

Parameter	TC-300	TC-400
Tube Diameter Range	12.7–76.2 mm	19.05–114.3 mm
Rotation Speed (RPM)	0.18–3.6	0.095–1.9
Cooling Method	Water-Cooled	Water-Cooled
Cooling Flow Rate	≥300 ml/min	≥300 ml/min
Rated Current	75A (60% Duty Cycle)	100A (60% Duty Cycle)
Dimensions (L x W x H)	385 x 160 x 42 mm	531 x 212 x 48 mm
Weight (Excl. Cable)	3.5 kg	6 kg
Shielding Gas	Argon	Argon
